Contractual Minimum Material Specifications

Disclaimer – this and subsequent articles on this subject are not intended to be legal advice, merely an example for discussions between you and your legal advisor.

Please keep in mind, many of these terms are applicable towards post frame building kits and would require edits for cases where a builder is providing erection services or materials and labor.

It never ceases to amaze me, when I read comments from people who have ordered a pole building kit, or a constructed building, and have little or no idea of how their building will go together, or what is or is not included.

Wood Bending StrengthMINIMUM MATERIALS’ SPECIFICATIONS: (as applicable) Skirt Boards (splash planks): #2&btr pressure preservative treated to a minimum UC-4A specification. Structural Columns (those which support roof loads), pressure preservative treated to a minimum UC-4B specification. Spacing of wall columns is at Seller’s discretion unless specifically indicated on face of Agreement.

Wall Girts and Roof Purlins greater than 8′ in length, minimum #2&btr.

Prefabricated, engineered roof trusses, or rafters, at discretion of Seller, unless otherwise noted in the Agreement. On occasion, with sidewall overhangs, trusses may be shipped without tails – if so, appropriate lumber and hangers (as needed) will be furnished to field add overhangs. Lumber shall conform to the applicable grading agencies Standard Grading Rules.

29 gauge steel roofing and siding. With steel roofing and siding and no sidewall overhangs, J Channel only shall be provided at tops of sidewalls as eave trim. No drip edge is included for steel roofing. Butyl tape sealant is supplied ONLY on roof steel overlaps for slopes of less than 3/12, unless by special order and indicated on face of invoice.

Polycarbonate eave light panels are fastened with 1″ white screws nine inches on center. Ridge caps are fastened with roof steel colored stitch screws to each roofing high rib.

Roof slope(s) not so specified in the Agreement are to be determined by Seller. Permanent roof truss chord bracing is as specified on third party E.O.R. sealed plans, which supersedes truss drawings.

Sliding doors must be assembled on site, from provided components, will not seal airtight, do not include weather stripping and are not insulated. Sliding door jambs are ripped (by Purchaser) from Seller furnished 2×6 and are not pressure preservative treated as they are protected from weather when the door is closed.

Residential overhead doors may be approximately 2″ less in width and 1″ less in height than dimensions specified. Overhead door openings only are provided without vinyl weather seals.

Pre-hung entry doors have 3-1/2″ jambs and may need to be installed swinging outward to facilitate full opening width. Doorknobs are usually positioned to be equidistant from top and bottom of doors. Seller is entitled to make substitutions of materials or equipment which Seller deems to be equivalent in performance to materials specified in the Agreement.

At Seller’s option, roof radiant reflective barrier may be replaced by felt (or other similar barrier) over oriented strand board, without the need for a Change Order. When needed for shear wall requirements, Purchaser will not unduly prevent Seller from relocating any doors, windows, or other openings.

Any shearwall or diaphragm blocking shall be as specified on third party E.O.R. sealed plans. Seller’s plans and instructions may deviate from component manufacturer’s installation instructions and manuals, due to judicious experience, and Purchaser acknowledges any such deviations are not cause for rejection or demands for extra or alternate materials.

Interior wall framing included only as specified on face of Agreement.

Eave height is the measure from the bottom of the pressure preservative treated skirt board (splash plank) (grade), to the underside of the roof steel (or other roofing material) at the outside of the sidewall double truss bearing columns.

Interior clear height, allowing for a nominal four inch concrete floor, will be ten inches or more less than the eave height. It is the responsibility of Purchaser to determine if eave height, width and height of door openings, or provided doors, is adequate for Purchaser’s needs.

MINIMUM QUALITY SPECIFICATIONS: Steel roofing and siding may naturally dimple at through fasteners or ripple between supports, and as such, neither is a defect. Steel trims may be subject to oil canning, or other expansion and contraction conditions after installation – this is not a product defect. Although every good faith effort will be made, no guarantee is possible to exactly match any colors, to existing materials. Commercial overhead doors may be primed only, and as such, color variations and/or scratches are not defects.

PURCHASER SUPPLIED MATERIALS: Purchaser clearly understands Purchaser will under no circumstances be reimbursed for the purchase of any replacement materials for any reason (including suspected damage or shortage) without the prior written authorization of Seller, or Seller’s suppliers.

This one pertains specifically when a building is being erected by a contractor:

PURCHASER SUPPLIED LABOR: Any work performed by purchaser is strictly prohibited without Seller’s written consent, however Purchaser may supply his own labor, without adjustment of the agreement price, with the exception of the column holes “where applicable”. Should the Purchaser opt to excavate their own column holes, Seller will furnish Purchaser with a layout only, and Purchaser must properly locate the same.

Column holes properly located, excavated and cleaned out by Purchaser, passing Building Department inspection will be credited at $10 per hole. For structures where columns are supported by brackets, purchaser to supply all equipment, and labor to properly embed into new concrete, except as otherwise noted. Purchaser is responsible for the timeliness and quality of all labor furnished by Purchaser, and is responsible for the performance of such work according to Seller’s schedule. Purchaser is responsible for Seller’s extra costs pursuant to section xx of this agreement, “change orders”, for extra costs incurred as a consequence of Purchaser’s failure to perform own labor in a timely manner without defect.

Vapor Barriers for Slabs on Grades

Our gracious thank you to Lisa Richards for this guest blog post.

Vapor Barriers for Slabs on Grade

Pouring a slab on grade is a common way to lay a sturdy floor or foundation where a basement or crawlspace is unnecessary. However, concrete slabs are vulnerable to moisture from the ground. That’s why, in most cases, a vapor barrier should be installed under the slab.

A vapor barrier is any material with a U.S. perm rating of less than 0.1 perm. Materials with higher perm numbers (more permeable) are classified as vapor retarders. Polyethylene plastic sheeting is typically used as a vapor barrier under slabs.

Do I need a vapor barrier under my slab?

Any thickness of concrete slab is permeable to moisture through vapor diffusion. Even in dry climates, water vapor will rise from the ground through the concrete, potentially causing all sorts of problems.

Indoor concrete slab

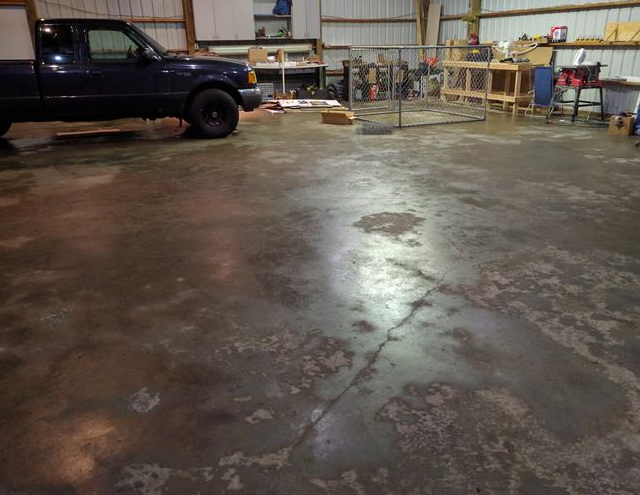

When the concrete slab will be part of the building envelope, a vapor barrier is essential for keeping moisture out of the building’s interior. The warmer air inside the building will draw moisture from underneath the concrete. This can lead to cracking, spalling (pieces flaking off the surface), and even moisture entering the building and pooling on the floor.



If flooring is going to be installed on the slab, failing to properly install a vapor barrier may lead to moldy carpet, de-laminated tile, or rotten wood. In areas where gases such as radon are a concern, a vapor barrier also plays a role in stopping diffusion of those gases through the slab.

Outdoor concrete slab

For outdoor slabs, vapor barriers are generally not required. However, if a single slab will be covering both indoor and outdoor areas, do not use a partial vapor barrier. This could lead to uneven curing and severely diminish the vapor barrier’s effectiveness. Seal the whole slab.

What kind of vapor barrier should I use?

Polyethylene (poly) plastic sheeting with a thickness of 10 mil or 15 mil is the most commonly used vapor barrier under slabs. 1 mil is equal to 0.001 inch of thickness. 6 mil poly, which is 0.006 inches thick and has a rating of 0.06 perms, is also sufficient for most applications but may not be as commonly stocked as 10 mil or 15 mil.

Whatever mil thickness you choose, make sure the vapor barrier adheres to ASTM E1745 standards. These standards mean the plastic is durable and flexible enough to sit atop granular fill without tearing. Stories of poly barriers tearing during installation usually involve poly that does not meet ASTM standards.

Installation of vapor barrier

How to Prevent Slab Curling

When poured, wet concrete contains plenty of moisture, which will evaporate during the curing process. There may be problems associated with the presence of a vapor barrier and the curing of the slab, since the moisture in the concrete can’t escape from the bottom. This can lead to “curling,” where the top of the slab will dry more quickly than the bottom, and the slab edges will rise upward relative to the center of the slab.

The best way to prevent curling is to use a concrete mix with the minimum moisture content needed to be workable. Another option is to include a blotter layer between the slab and vapor barrier. This blotter layer can be crush-run granular fill. Sometimes, sand is used, but beware that some sand could act as a water reservoir, causing more problems down the road. Check local building authorities for advice on whether to use a blotter layer. Pouring the slab directly onto the vapor barrier is a more common practice today and will likely be effective as long as the concrete is not too wet.

Seal Seams and Intrusions

A vapor barrier with one improperly sealed spot will render the barrier ineffective. All seams should overlap at least 6 inches and be sealed with vapor tape. Butyl tape or a butyl-type sealant should be used to adhere the vapor barrier around any intrusions into the slab.

Other applications of vapor barriers

Vapor barriers are also commonly used in walls and ceilings, especially in cold climates, to prevent moisture from damaging building materials, and for other applications. See other ways vapor barriers can be used in your post-frame building project.

Lisa Richards
Account Manager, Americover

Lisa has been with Americover for the past 12 years, after coming from her position as VP of Sales for the College Loan Corporation. Her expertise and versatility in finding the right solution to meet industry needs, has inspired her customer’s confidence and is one of the many reasons she has been Americover’s top salesperson for the last five years.
