A Serious Case of Roof Steel Leaks

Pole Barn Guru Blog

This is one of those “Dear Pole Barn Guru” letters which I feel bad for the client in having to answer. The client has paid good money to have his new post frame building constructed, only to have installer challenges render the end result as far less than ideal.

For your reading pleasure:

DEAR POLE BARN GURU: The Hansen pole barn kit I bought has 26 gauge steel roofing put on twice by a licensed contractor that still leaks profusely. A licensed roofer suggested 50 year shingles. Will the trusses bear the weight of a wooden deck and shingles? What’s the expected life span/warranty on your 26 gauge steel roofing from ABC in SLC? TOM in SHERIDAN

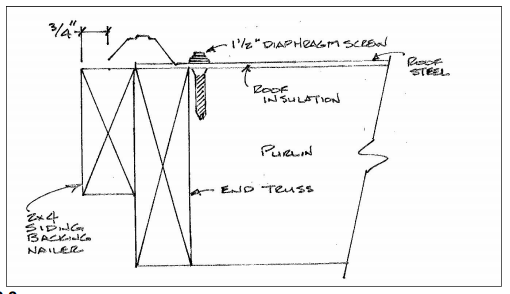

DEAR TOM: I’ve had seen the photos of your roof from the inside, as near as I can tell, the roof purlins were not originally set in a straight line from one end of the building, to the other. It then appears the roof steel was predrilled, causing a plethora of screws to miss the purlins as installation progressed from the end towards the middle. The only real solutions are to add lots of framing under all of the holes (so every screw goes straight into the underlying framing) or to remove the roofing, align the purlins and then install new steel over them. If the roof plane is square, the purlins are placed in straight rows and the roof steel is predrilled to properly match the purlin spacing, there is no reason it should leak – other than plain installer error. Placing screws through holes at an angle, or using caulking is not an adequate repair.

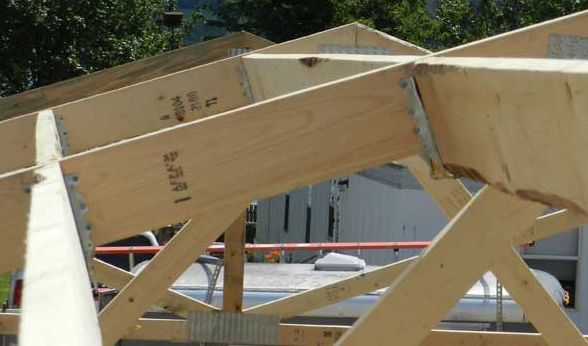

As with most post frame (pole) buildings, the roof has been designed to support the weight of the trusses, roof purlins, minimal roof insulation (to prevent condensation) and the roof steel. In order to support OSB or plywood and shingles, at a minimum the roof would need to have been designed for a 7 psf (pounds per square foot) dead load, rather than 3.3 psf. It might be possible to get an engineered repair to the trusses to increase the load carrying capacity, but it is unlikely it would be an easy, or inexpensive, fix.

The steel warranty information is available on our website at:

https://www.hansenpolebuildings.com/pole-building-faqs/product-warranties/

In your climate, properly installed, your steel roof should last longer than either you or I.

On a side note – a “50 year” shingle typically has a very rapid decline in what percentage of replacement material (no labor) is covered. Here is the true story of shingle warranties:

https://www.hansenpolebuildings.com/2015/03/shingle-warranties/

2 thoughts on “A Serious Case of Roof Steel Leaks

  1. This flirts with a issue I need to deal with when I build my shed (21×30, used materials)
    ie, what to do about existing holes in the metal.

    I had planned to clean and caulk them with a “good” grade caulk, my 5200? something that doesn’t wear or come off.

    But what about just adding a small backer block and screwing the screws in like normal?

    Reply
    1. admin Post author

      Dan ~ Caulking is never the answer when it comes to holes in steel roofing. No matter how good the caulking, you will have future problems. The only approved solution is to use a solid wood block below and screw through the steel into the block.

      Reply
